M4000 Brush Motors

M4000
M4000  Series DC  Brush  Servomotor

High performance DC Brush Servo Motors

M4000 ( 4 inches diameter) is a member of Mechatronic's family of DC brush servomotors.  Series M4000 utilizes high energy rare earth magnets and designed for tough industrial and military applications. M4000 features compact size, high power density, with high starting and continuous torque.

The use of rare earth permanent magnets allow the motors to be much smaller than motors with ceramic magnets for the same power. Thus M4000 is the solution for aftermarket field replacement
of virtually all brands of product. For new applications M4000 offers high Torque- to- Inertia and Torque-to- Weight ratios than ceramic or samarium cobalt based magnet design.
Low cogging is achieved by skewed laminations. This  design provides smooth rotation at near zero speeds.

M4000 is  made in the USA at our Boston factory.  This allows  Mechatronics Systems to respond very quickly to customer's need whether it is a one piece prototype or a five hundred pieced order.
Motors can be customized to fit your exact need with tachometers, encoders, resolvers, brakes and gearboxes.

Over the last 10 years a large number of  M4000 servomotors have been installed in CNC machine tools, paper, plastic, radar and antennas, textile, packaging as well as military applications

Features & Benefits

  • 20-60 in-Lb Continuous Stall Torque
  • Lightweight compact package
  • Precision low speed operation,
  • High torque-to-inertia, torque to weight ration
  • Rugged industrial construction
  • Constant pressure brush mechanisms improve brush and commutator life
  • Available with integrated brush holder for IP645 rating
  • Large, shielded or sealed ball bearings are pre-lubricated

Options

  • Premium performance tachometers (3% avg-to-peak ripple)
  • Tachometer sensitivities from 1- 30V DC/1000 RPM
  • Optical Encoders
  • Resolvers
  • Custom shaft, Cables and Connectorsconfiguration
  • Fail safe Brakes( Spring loaded)
  • Gearboxes
  • Metric mounting dimensions
  • IP65 Sealing

Specification

Specification

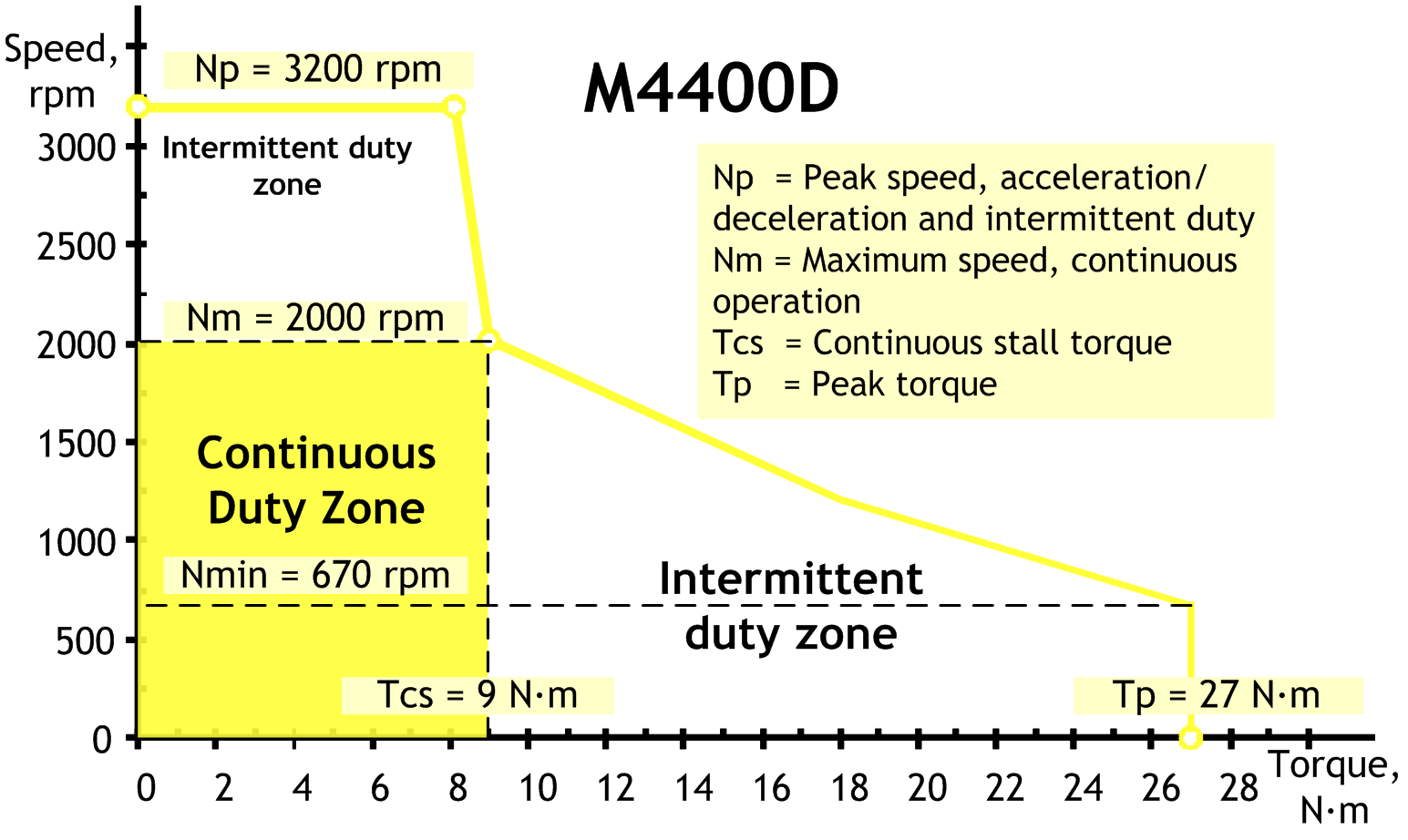

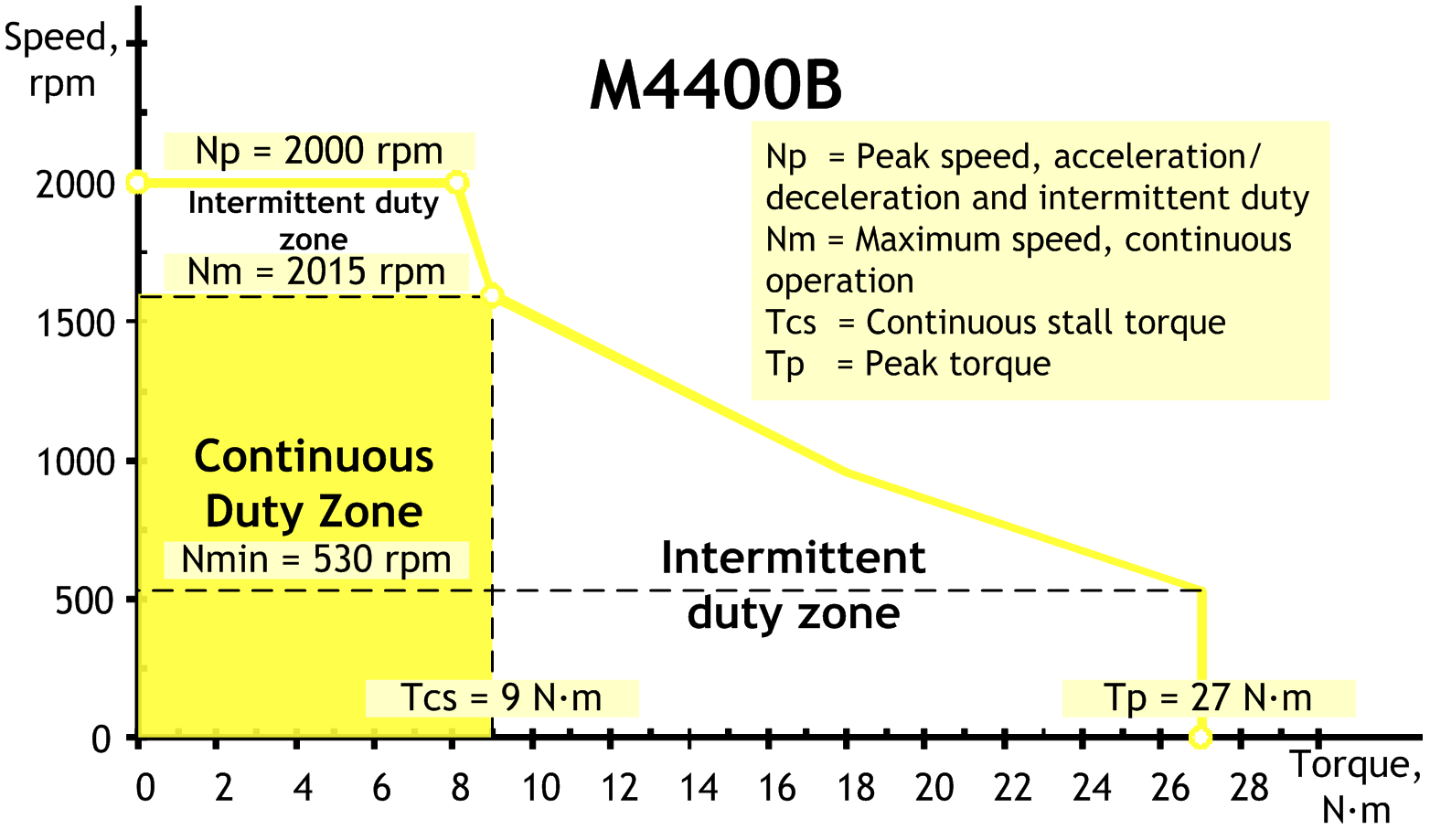

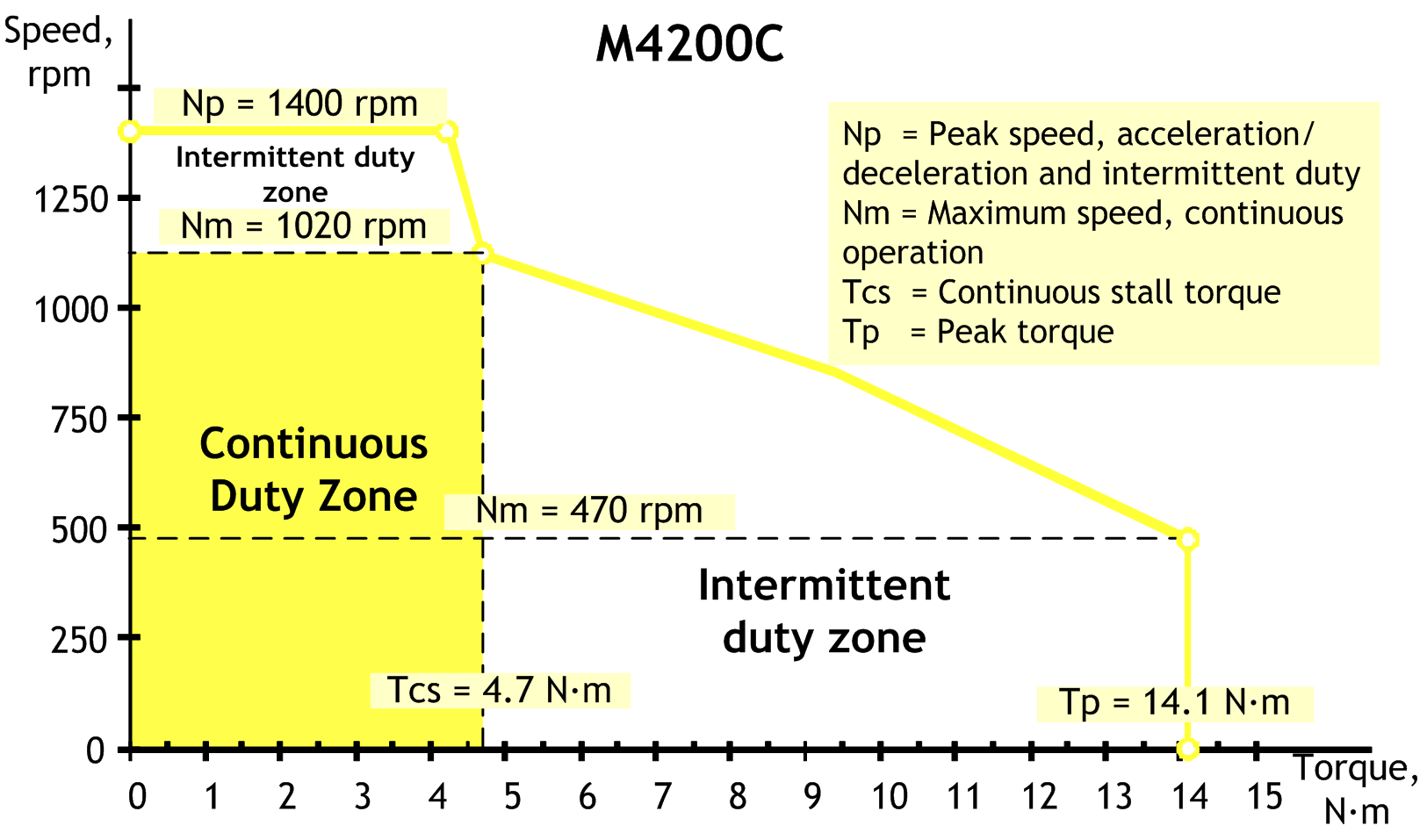

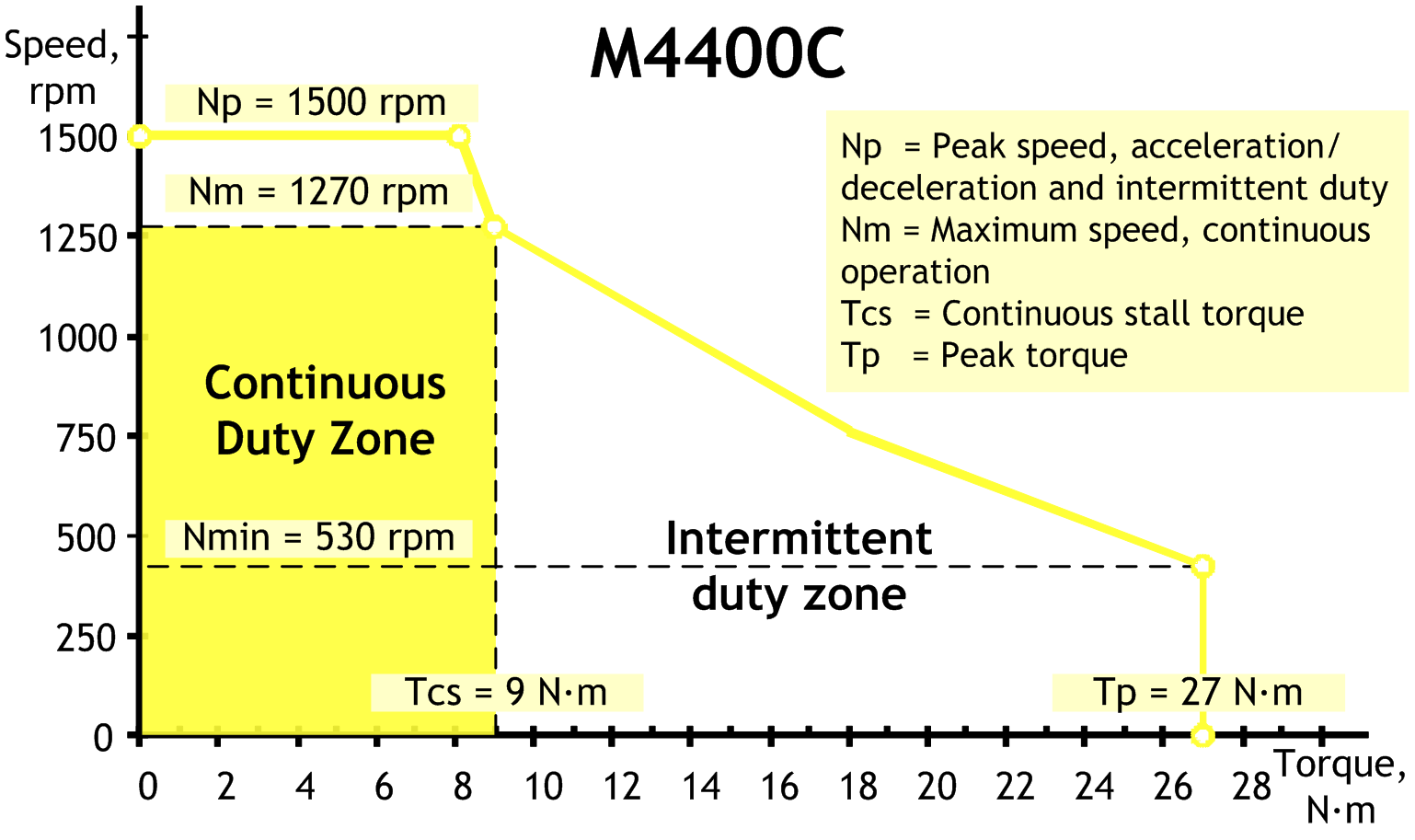

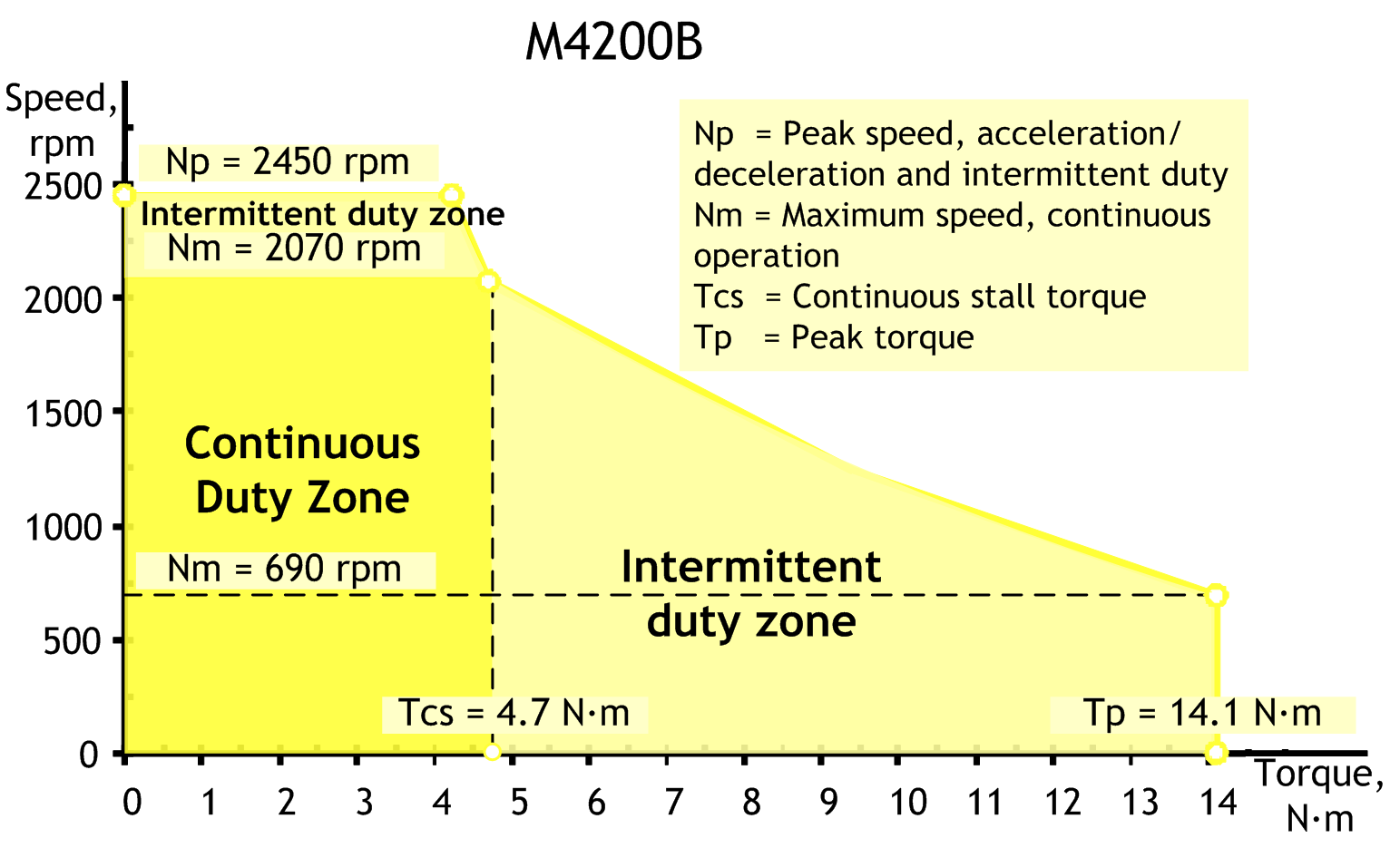

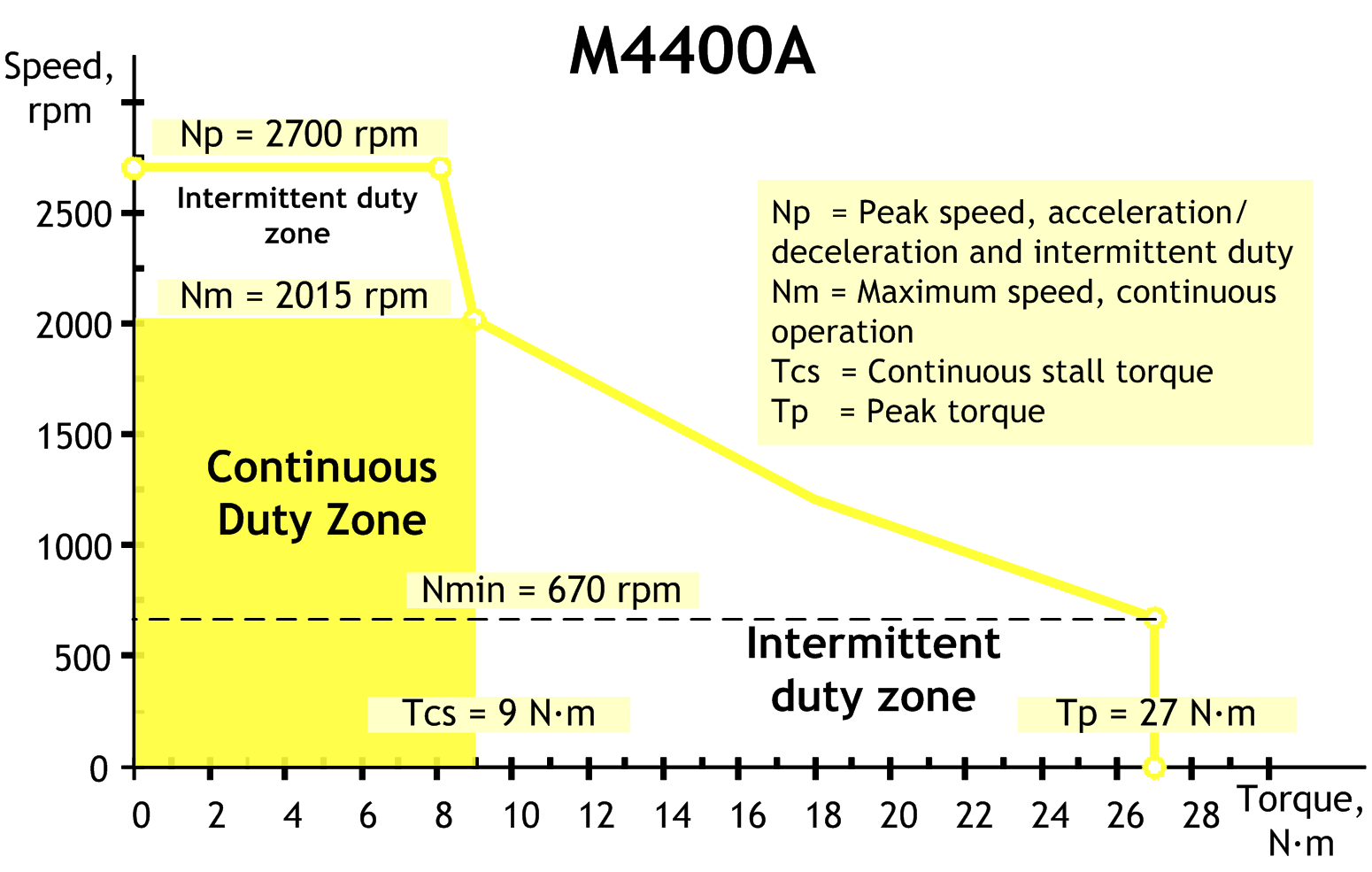

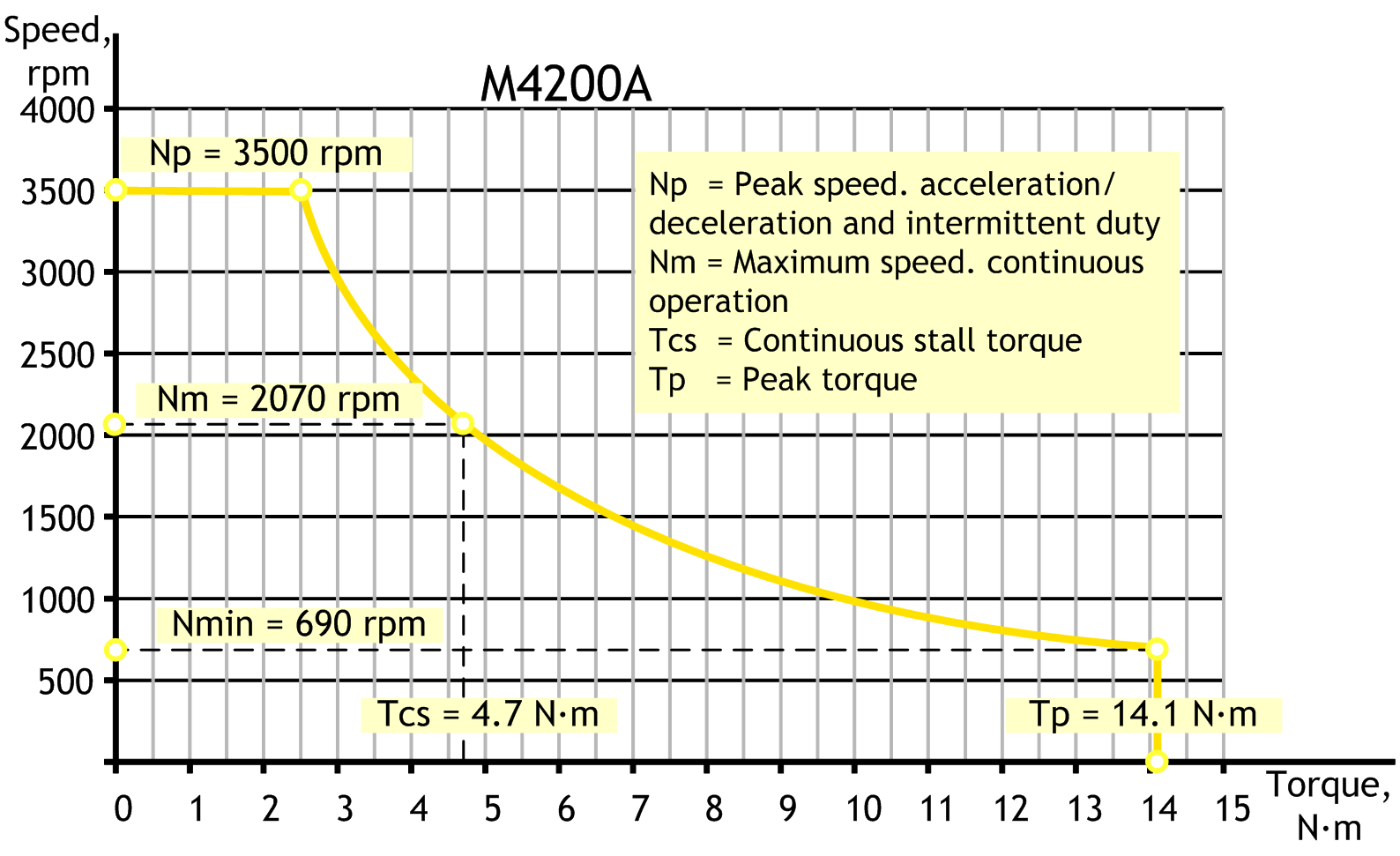

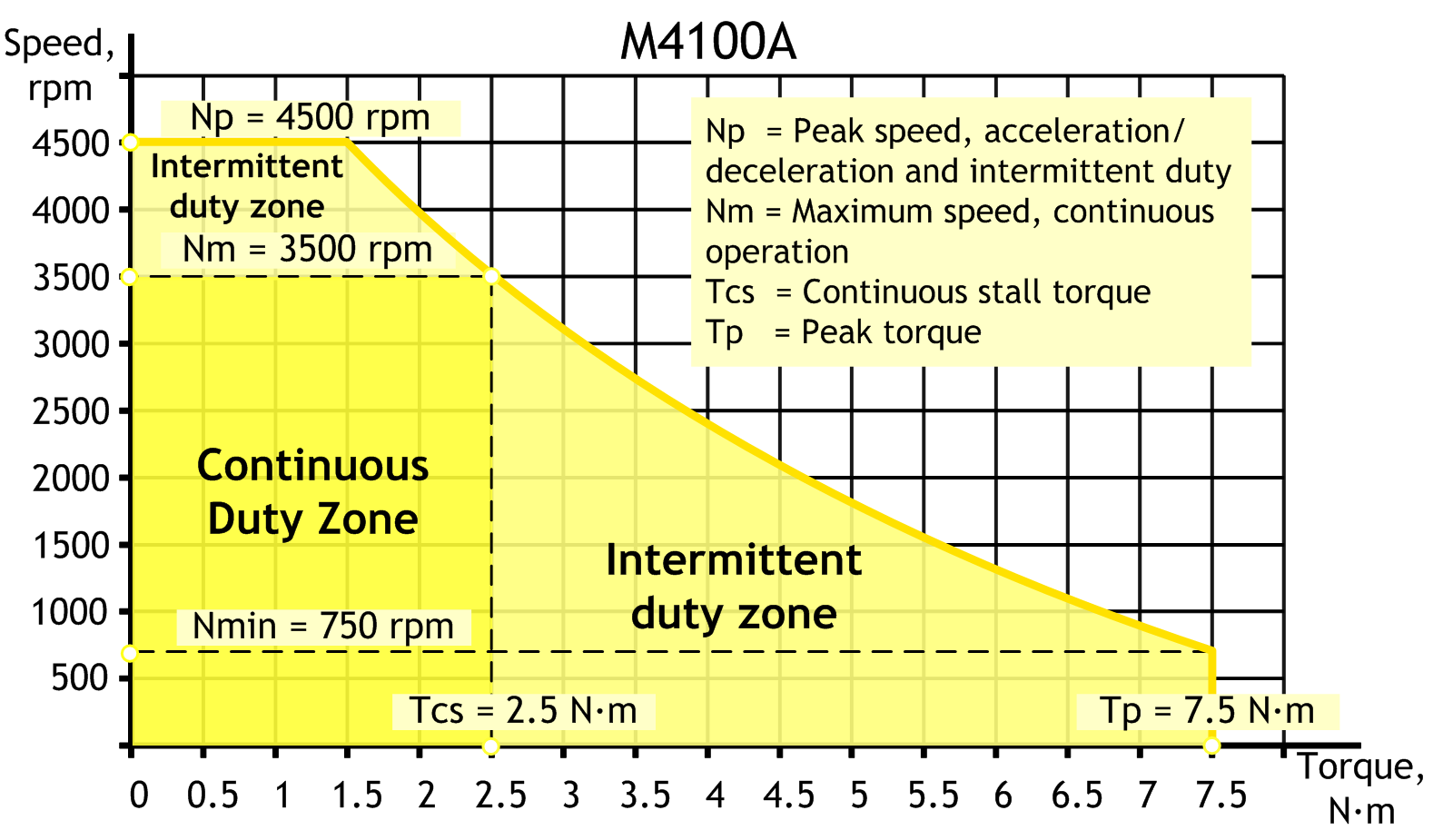

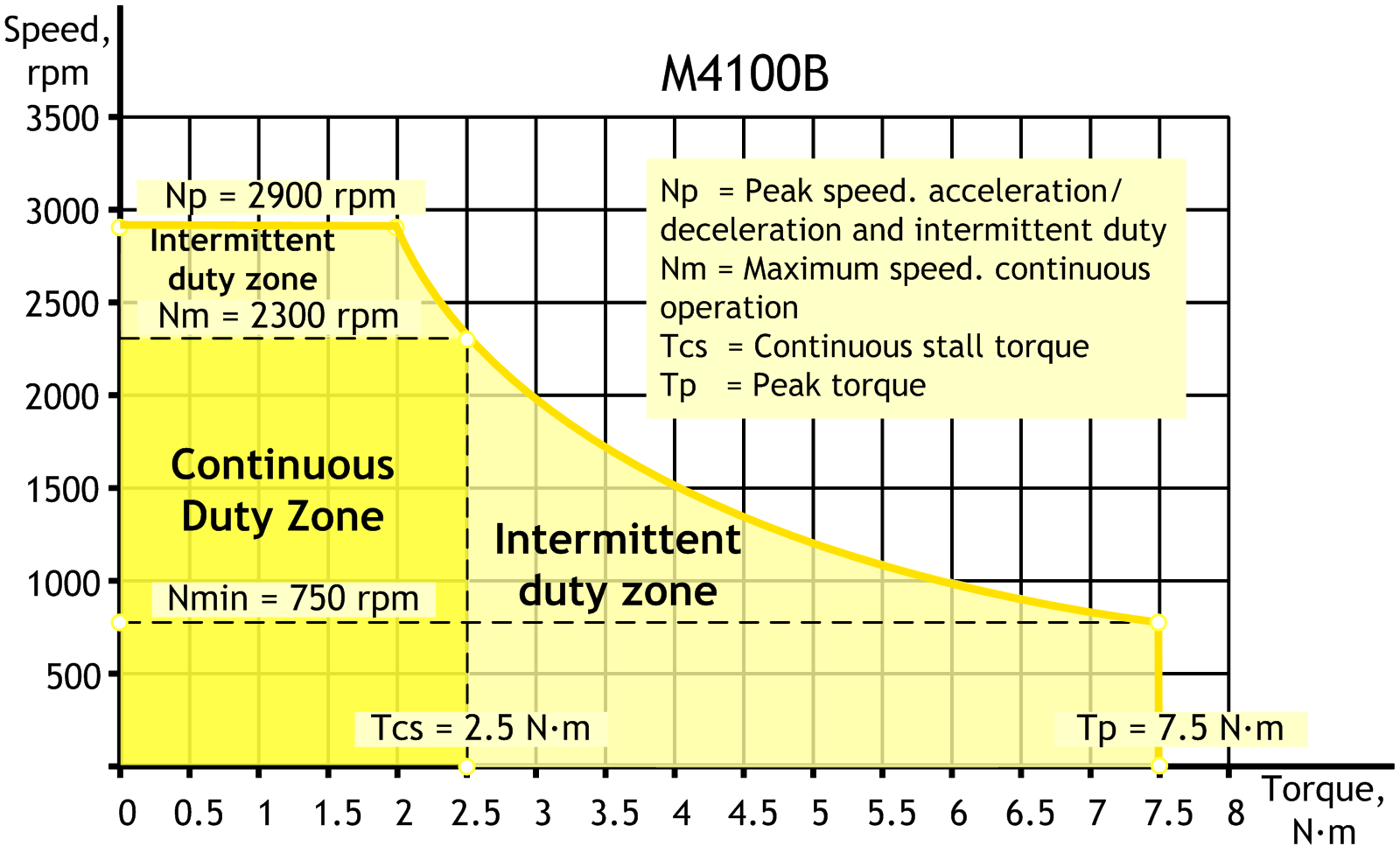

Performance

M4000 OVERKILL SERIES

DC Servomotors

Motor Parameters Symbols Units M4100 M4200 M4300 M4400
A B A B C D A B C D A B C D
Horsepower HP Rated HP 1.21 0.80 1.37 1.37 0.94 1.50 1.74 1.74 1.21 2.01 2.55 2.01 1.61 2.55
Kilowatts KW Rated KW 0.9 0.6 1.02 1.02 0.7 1.12 1.3 1.3 0.9 1.5 1.9 1.5 1.2 1.9
Max Operating Speed N Max RPM 4500 2900 3500 2450 1400 4500 3000 2400 1500 4000 2700 2000 1500 3200
Cont. Torque (stall) TC lb-ft 1.84 1.84 3.46 3.46 3.46 3.46 5.09 5.09 5.09 5.09 6.63 6.63 6.63 6.63
@ 40°C amb N-m 2.5 2.5 4.7 4.7 4.7 4.7 6.9 6.9 6.9 6.9 9 9 9 9
Current @ cont. torque IC amps 10 6.3 15.5 10.7 6.1 19.8 19 14.9 9.6 26.5 21.7 16.3 13 26.1
Peak Torque TP lb-ft 5.53 5.53 10.39 10.39 10.39 10.39 15.26 15.26 15.26 15.26 19.90 19.90 19.90 19.90
N-m 7.5 7.5 14.1 14.1 14.1 14.1 20.7 20.7 20.7 20.7 27 27 27 27
Current @ Peak torque IP amps 30 18.9 46.5 32.1 18.3 59.4 57 44.7 28.8 79.5 65.1 48.9 39 78.3
Max Terminal Voltage Vmax Volts 120 120 120 120 120 120 120 120 120 120 120 120 120 120
Torque Sensitivity ± 10% KT lb-ft/amp 0.18 0.27 0.22 0.32 0.55 0.18 0.29 0.35 0.59 0.44 0.31 0.41 0.52 0.26
N-m/amp 0.25 0.37 0.3 0.44 0.74 0.25 0.4 0.48 0.8 0.6 0.42 0.55 0.7 0.35
Back EMF Constant Kv V/K RPM 26.13 38.67 31.35 45.98 77.33 26.13 41.80 50.16 83.60 62.70 43.89 57.48 73.15 36.58
DC Resistance ± 12% RT ohms 0.69 1.65 0.37 0.71 2.31 0.23 0.26 0.44 1.25 0.158 0.26 0.43 0.69 0.19
Inductance ± 30 % LM MH 1.8 4.5 1.6 2.6 9.4 0.8 2 1.2 8 1 1.2 2.2 3.2 0.8
Rotor Inertia JM lb-ft-sec2 0.0007 7E-04 0.001 0.001 0.001 0.001 0.0015 0.0015 0.0015 0.0015 0.002 0.002 0.002 0.002
Kg-m2 0.0009 9E-04 0.00135 0.00135 0.0014 0.001 0.002 0.002 0.002 0.002 0.0027 0.003 0.0027 0.0027
Weight WT lb 14.3 14.3 17.4 17.4 17.4 17.4 22.6 22.6 22.6 22.6 28 28 28 28
Kg 6.49 6.49 7.89 7.89 7.89 7.89 10.25 10.25 10.25 10.25 12.70 12.70 12.70 12.70
Tachometer Parameter 3% ripple pp at 1000 RPM. 2.6k Min load resistance
Voltage Sensitivity ± 10% KG RPM 3,7,15,19V avaialble 3,7,15,19V avaialble 3,7,15,19V avaialble 3,7,15,19V avaialble

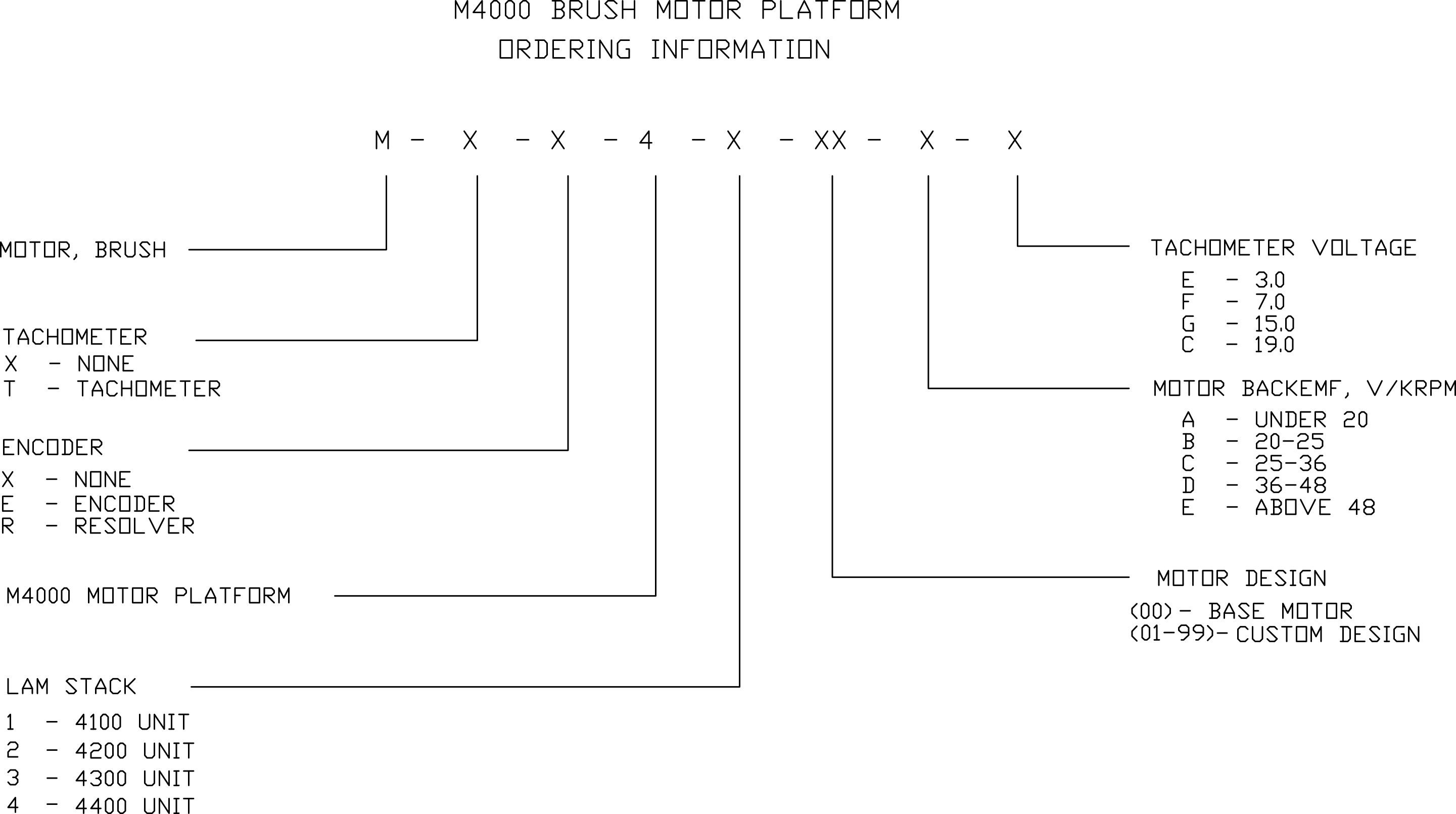

Model Number

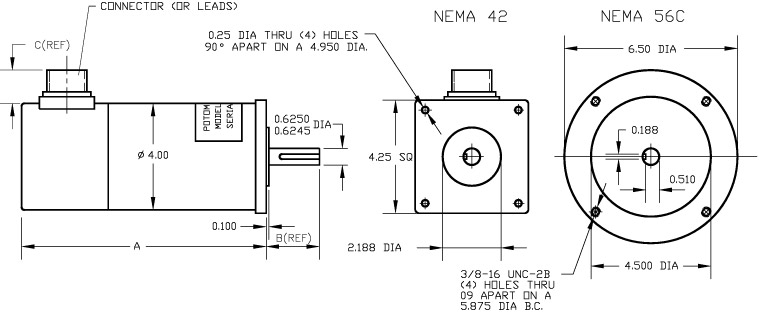

Dimensions



Description of servomotor Type
4100 4200 4300 4400
Servomotor 5.90 6.90 7.90 9.50
Servomotor with tachometer 6.80 7.75 8.90 10.50
Servomotor with encoder 6.80 7.75 8.90 10.50
Servomotor with tachometer & encoder 8.25 9.18 10.30 12.00
