MCS Integrated Motor-Drive



Integrated VFD Servo Motor Drive
MCS - Integrated VFD Motor Drive

MCS (MOTOR CONTROL SYSTEM) - INTEGRATED SERVO-LIKE MOTOR DRIVE IN A SINGLE NEMA 56 FRAME

Mechatronics Systems Developed the MCS Family Of Products To Meet The Growing Marketplace Demand for Integrated VFD Motor Drives.

The MCS combines a high-performance motor and drive in a single, compact package. In fact, the MCS has the size of a standard NEMA 56 frame AC induction motor but is significantly shorter while delivering the same power output.

The MCS family of integrated VFD motor drives is compact due to its superior efficiency compared to the AC induction motor and variable speed inverter combination. It also delivers exceptional energy efficiency, enhanced torque, and high performance even at low speeds.

Mechatronics Systems motor control systems are the top choice for replacing DC brush motors in both new and existing applications. The MCS family of integrated (VFDmotor drives  delivers the performance of a brush servo motor while eliminating common issues such as large size, brush maintenance, and limited high-speed operation.

The MCS is ideal for variable speed DC and AC induction motor applications and processes. For new applications, you'll benefit from its small footprint, easy wiring, high torque, energy efficiency, and excellent low-speed velocity control.

Our integrated VFD servo-like motor drives are designed for a wide range of applications, including smart conveyors, robotic vehicles, centrifuges, metering pumps, mixers, linear actuators, small power CNC spindles, and plastic moldings—and much more.

Features & Benefits

  • RS-485, Modbus, and Ethernet Connectivity
  • Command and I/O control by PC or PLC
  • Programmable digital inputs and outputs
  • Standard I/O functions, including Start, Stop, Forward, and Jog
  • Analog command inputs: 0-10 V and 4-20 mA
  • Torque, Velocity, and Position operating modes
  • Advanced digital drive electronics
  • Heavy-duty sealed ball bearings for long service life
  • 5/8-inch NEMA cold-rolled steel shaft
  • Standard 1800 RPM operating speed
  • 115 VAC and 230 VAC three-phase input power
  • Three standard frame lengths with continuous power ratings up to 3 HP

Available Options

  • Speeds up to 5000 RPM
  • Dynamic brake with power resistor
  • Custom software and hardware configurations
  • Operation from 24 VDC and 48 VDC for battery-powered applications
  • Metric shaft dimensions
  • Metric front mounting plate
  • Custom mounting dimensions
  • Electrical brake
  • Output gearbox
  • IP67 protection rating
  • Stainless steel housing, FDA food-grade compliant



Model

MCS05/MCS1

MCS2/MCS2.5

MCS3

Output Rating

Output Power

HP

0.5/1

2/2.5

3

kW

0.38/0.745

1.5/1.8

2.2

Input Rating

Rated Voltage/ Frequency

Single/Three Phase 115/200/208/220/230V AC 50-60Hz

Voltage/Frequency Tolerance

Voltage: ±10% Frequency: ±10%

Length (inch [mm])

5.5 [140]

6.5 [165]

7.5 [191]

Weight (lb [kg])

9.7 [4.4]

13.5 [6.2]

19.5 [8.9]



Control Characteristics

Control System

Torque Control Mode

Velocity Control Mode

Position Control

Rated Speed

0 - 5000 RPM

DC Braking

Built-in braking circuit

Acceleration/
Deceleration

0.1 - 30 seconds (linear or nonlinear profile)

Operation Specification

Inputs

Digital



5 inputs, 5-24 VDC, internal 20 kOhm pull-up resistor

Three dedicated inputs for Forward, Reverse and Jog functions

Two user-programmable inputs

Activate motion by pulling the input low to common

Speed Command





4-20mA current input

DC potentiometer or signal 0-5 VDC

Digital Pulse train 5-5000HZ

Digital encoder in quadrature. Built-in Line Driver receiver

Outputs

Programmable Output

5-24 VDC open collector output. Built-in pull-up resistor 20kOhm

Analog Output

0-5 VDC, 10 mA max., user-defined function

Operating Functions

Torque, Speed, and Position Modes of Operation; Linear and S-Curve Acceleration Profiles; High-Performance PID Control Loops; Start, Stop, and Jog Functions; Adjustable Acceleration and Deceleration Rates; Adjustable Current Limit

Protective Functions

Overvoltage Protection, Thermal Protection, Overcurrent Protection, and Torque Limiting

Operator Interface

Hardware (using I/Os)

Jog, Forward, Reverse, Stop

Network Control

USB, RS485, Ethernet

Environmental

Ambient Temperature

-10°C - 40°C (14°F to 104°F)

Storage Temperature

-20°C - 60°C (-4°F to 140°F)

Ambient Humidity

20 - 90%

Vibration

9.8m/s 2 (1G) less than 10Hz, 5.9m/s 2 (0.6G) 10 to 60Hz



Installation Location

Altitude up to 1000 m (3,280 ft) above sea level; install in an environment free of corrosive gases, liquids, and excessive dust.

Options

Ethernet Interface, Modbus RS-485 Communication, Custom Speed-Torque Characteristics, Mechanical Gearbox, Mechanical Brake, Metric Mounting Dimensions, and Custom Packaging.

Conformity

CE

Low−Voltage Directive (73/23/EEC) EMC Directive (93/68/EEC)

Approvals (Pending)

UL 508C

Power Conversion Equipment

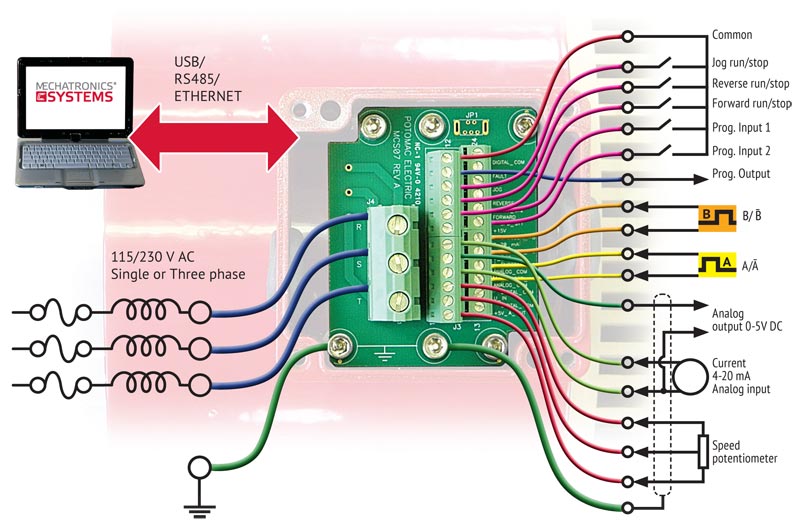

Wiring Diagram

Control Wiring Diagram

Please contact our Application Engineering for the specific model. MCS is designed to tailor its performance to various models and options.

Motor Control System (MCS) Model Numbering

MCS POWER AC  INPUT VOLTAGE MECHANICAL CONFIGURATION OPTIONS COMMUNICATION ELECTRICAL OPTIONS

MCS05

1GB

01

01

XX

0.5HP
1HP
1.5HP
2HP
2.5HP
3HP

1 - single-phase 115V
2 - single-phase 230V
3 - three-phase 230V

G - Gearbox
B - Brake

01 - NEMA 56
02 - NEMA56C
Foot Mount

Consult factory for various options

0 - Manual Control

1 - RS-485

2 - Modbus

3 - Ethernet  IP

Consult factory for various options


EXAMPLE:  MCS1 - 3 - 02 - 0 - XX

MCS unit: 1HP, three phase 230V AC, no gearbox/brake, NEMA  56C, Manual Control, no electrical options

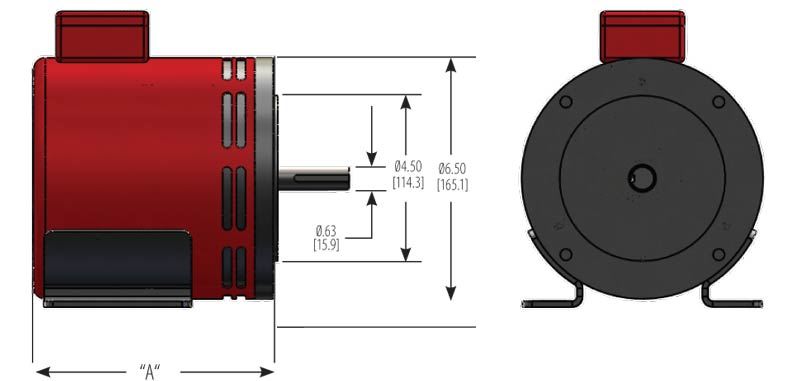

MCS Mechanical Dimensions

MCS Mechanical Dimensions diagramm

MCS DIMENSIONS

MODEL

MCS05

MCS1

MCS1.5

MCS2

MCS3

HP [kW]

0.5 [.37]

1 [.75]

1.5 [1.12]

2 [1.49]

3 [2.24]

"A" inch [mm]

5.5 [140]

6.5 [165]

7.5 [191]
