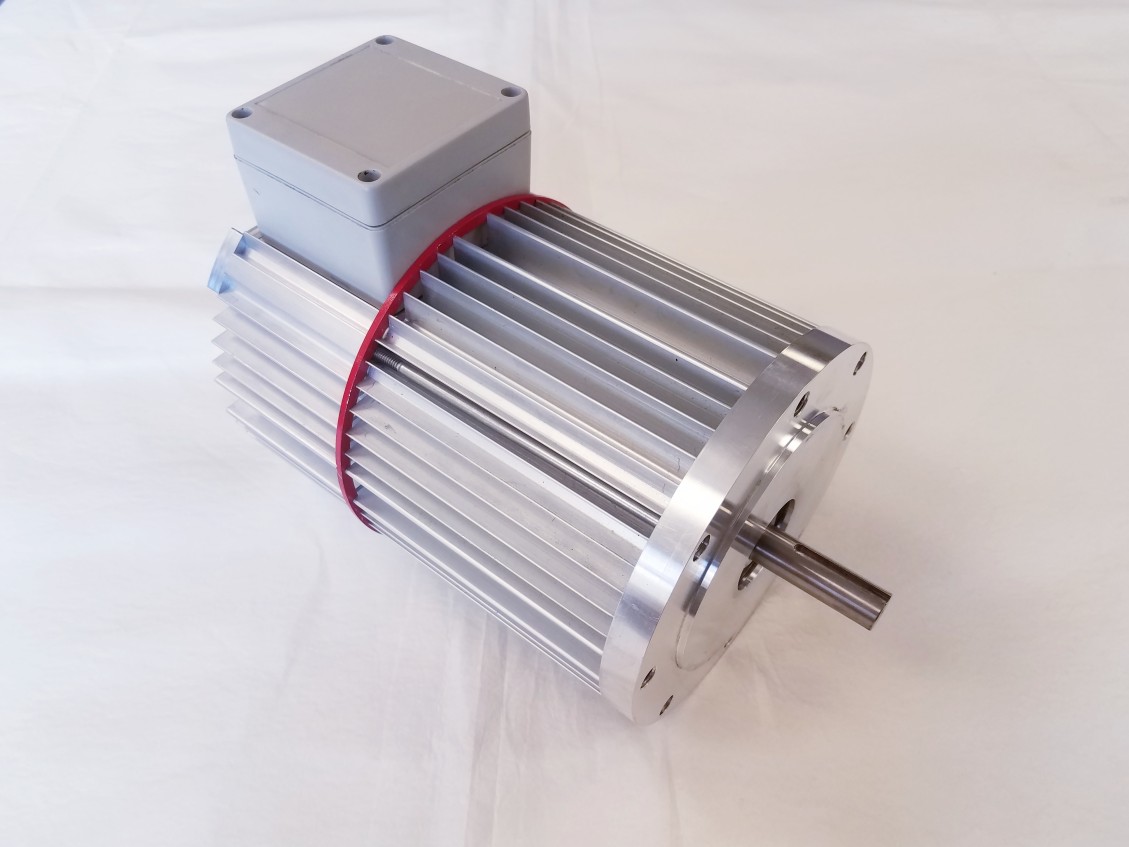

MDS - Integrated AC Brushless Motor and Drive

MDS (MOTOR DRIVE SYSTEM) - INTEGRATED AC BRUSHLESS MOTOR AND DRIVE IN A SINGLE NEMA 56 FRAME

Mechatronics Systems Developed the MDS Family to Meet the Growing Market Demand for Integrated Variable Speed Motor Drives

The MDS combines a high-performance motor and drive in a single, compact package. The MDS family of integrated variable speed motor drives offers a significantly smaller footprint compared to AC induction or DC brush motors of the same power output.

The MDS outperforms the traditional AC induction motor and variable speed inverter combination due to its superior efficiency. It delivers exceptional energy efficiency, enhanced torque, and high performance even at low speeds.

Mechatronics Systems MDS is the top choice for replacing DC brush motors and AC induction motors in both new and existing applications. The MDS family delivers the performance of a brush motor while eliminating common brush motor issues such as large size, frequent maintenance, and limited high-speed operation.

Our MDS is ideal for variable speed DC and AC induction motor applications and processes. For new applications, you'll benefit from its small footprint, easy wiring, high torque, energy efficiency, and excellent low-speed velocity control.

Smart conveyors, robotic vehicles, centrifuges, metering pumps, mixers, linear actuators, small power CNC spindles, and plastic moldings—our integrated variable speed servo motor drives are ideal for these applications and more.

Features & Benefits

  • Bluetooth connectivity for easy setup, plus Ethernet and Modbus TCP/IP communication
  • Command and I/O control by PC or PLC
  • Programmable digital inputs and outputs
  • Standard I/O functions, including Start, Stop, Forward, and Jog
  • Analog command inputs: 0-10 V and 4-20 mA
  • Torque, Velocity, and Position operating modes
  • Advanced digital drive electronics
  • Heavy-duty sealed ball bearings for long service life
  • 5/8-inch NEMA cold-rolled steel shaft
  • Standard 1800 RPM operating speed
  • 115 VAC and 230 VAC three-phase input power
  • Three standard frame lengths with continuous power ratings up to 3 HP

Available Options

  • Speeds up to 5000 RPM
  • Dynamic brake with power resistor
  • EtherCAT communication
  • Operation from 24 VDC and 48 VDC for battery-powered applications
  • Metric dimensions
  • Custom mounting dimensions
  • Electrical brake
  • Output gearbox
  • IP66/IP67 protection rating
  • Stainless steel housing, FDA-compliant food-grade construction



Model

MDS05/MCS1

MDS2/MCS2.5

MDS3

Output Rating

Output Power

HP

0.5/1

2/2.5

3

kW

0.38/0.745

1.5/1.8

2.2

Input Rating

Rated Voltage/ Frequency

Single/Three Phase, 115/200/208/220/230 VAC, 50-60Hz

Voltage/Frequency Tolerance

Voltage: ±10% Frequency: ±10%

Length (inch [mm])

5.5 [140]

6.5 [165]

7.5 [191]

Weight (lb [kg])

9.7 [4.4]

13.5 [6.2]

19.5 [8.9]



Control Characteristics

Control System

Torque Control Mode

Velocity Control Mode

Position Control

Rated Speed

0 - 5000 RPM

DC Braking

Built-in braking circuit

Acceleration/
Deceleration

0.1 - 30 seconds (linear or nonlinear profile)

Operation Specification

Inputs

Digital



5 inputs, 5-24 VDC, internal 20 kOhm pull-up resistor

Three dedicated inputs for Forward, Reverse and Jog functions

Two user-programmable inputs

Activate motion by pulling the input low to common


Speed Command





4-20mA current input

DC potentiometer or signal 0-5 VDC

Digital Pulse train 5-5000HZ

Digital encoder in quadrature. Built-in Line Driver receiver

Outputs

Programmable Output

5-24 VDC open collector output. Built-in pull-up resistor 20kOhm

Analog Output

0-5 VDC, 10 mA max., user-defined function

Operating Functions

Torque, Speed, and Position Modes of Operation; Linear and S-Curve Acceleration Profiles; High-Performance PID Control Loops; Start, Stop, and Jog Functions; Adjustable Acceleration and Deceleration Rates; Adjustable Current Limit

Protective Functions

Overvoltage Protection, Thermal Protection, Overcurrent Protection, and Torque Limiting

Operator Interface

Hardware (using I/Os)

Jog, Forward, Reverse, Stop

Network Control

USB, RS485, Ethernet

Environmental

Ambient Temperature

-10°C - 40°C (14°F to 104°F)

Storage Temperature

-20°C - 60°C (-4°F to 140°F)

Ambient Humidity

20 - 90%

Vibration

9.8m/s 2 (1G) less than 10Hz, 5.9m/s 2 (0.6G) 10 to 60Hz



Installation Location

Altitude up to 1000 m (3,280 ft) above sea level; install in an environment free of corrosive gases, liquids, and excessive dust.


Options

Ethernet Interface, Modbus RS-485 Communication, Custom Speed-Torque Characteristics, Mechanical Gearbox, Mechanical Brake, Metric Mounting Dimensions, and Custom Packaging


Conformity

CE

Low Voltage Directive (73/23/EEC) and EMC Directive (93/68/EEC)

Approvals (Pending)

UL 508C

Power Conversion Equipment

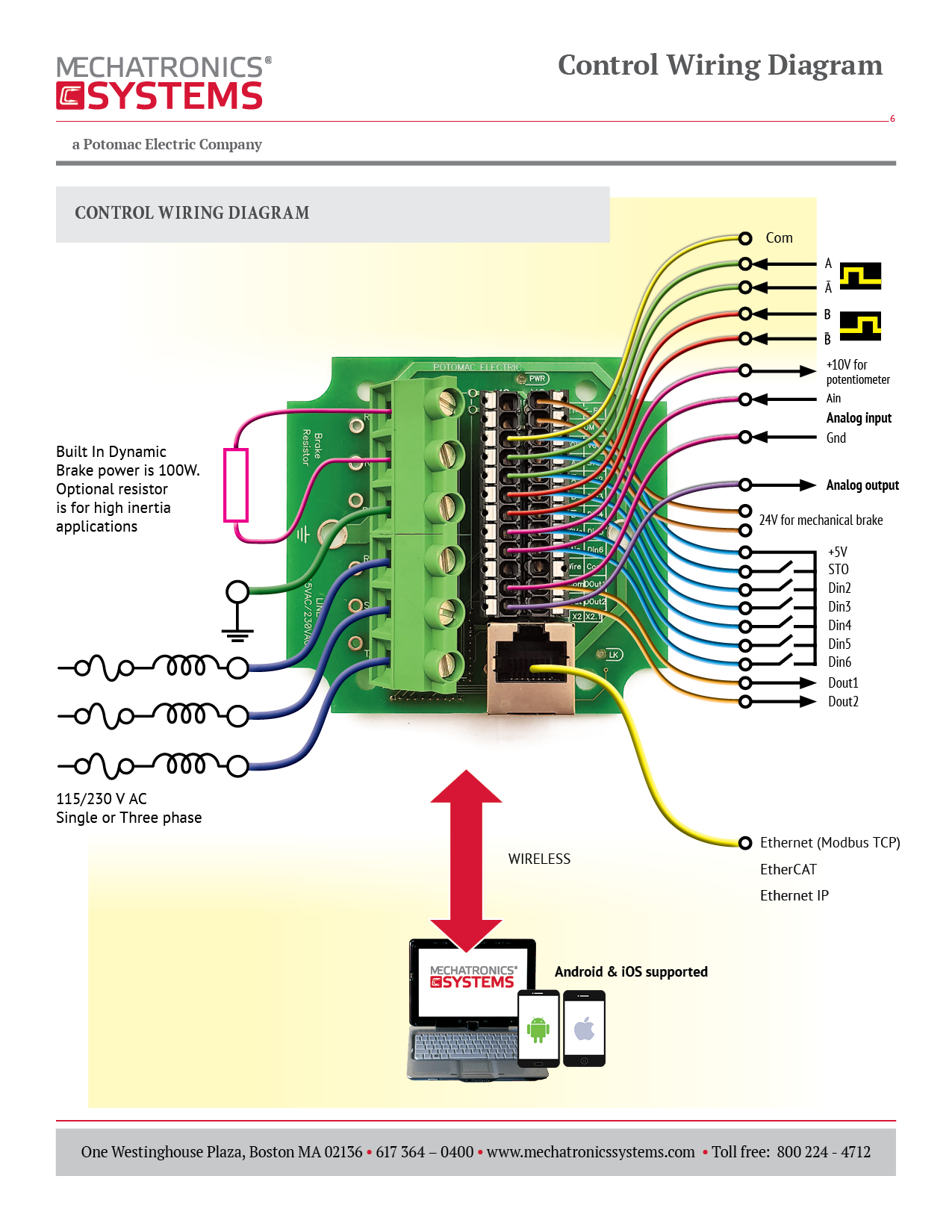

Control Wiring Diagram

Please contact our Application Engineering for specific model. MCS is designed to tailor its performance to various models and options.

Motor Control System (MDS) Model Numbering

MDS POWER AC  INPUT VOLTAGE MECHANICAL CONFIGURATION OPTIONS COMMUNICATION ELECTRICAL OPTIONS

MDS05

1GB

01

01

XX

0.5HP
1HP
1.5HP
2HP
2.5HP
3HP

1 - single  phase 115V
2 - single  phase 230V
3 - three phase 230V

G - Gearbox
B - Brake

01 - NEMA 56
02 - NEMA56C
Foot Mount

Consult factory for various options

0 - Manual Control

1 - Ethernet

2 - Modbus TCP/IP

3 - EtherCAT

Consult factory for various options


EXAMPLE:  MDS1 - 3 - 02 - 0 - XX

MDS unit: 1HP,  three phase 230V AC, no gearbox/brake, NEMA  56C, Manual Control, no electrical options

MDS Mechanical Dimensions

MCS Mechanical Dimensions diagramm

MCS DIMENSIONS

MODEL

MDS05

MDS1

MDS1.5

MDS2

MDS3

HP [kW]

0.5 [.37]

1 [.75]

1.5 [1.12]

2 [1.49]

3 [2.24]

"A" inch [mm]

5.5 [140]

6.5 [165]

7.5 [191]

# Name Type Size (MB)
1. MDS Integrated Motor-Drive Flyer MDS_Flyer.pdf PDF 2.5
2. MDS Integrated Motor-Drive Specification Booklet MDS Family.pdf PDF 0.8
