BPS Series DC Bus Power Supply

DC Power Supply

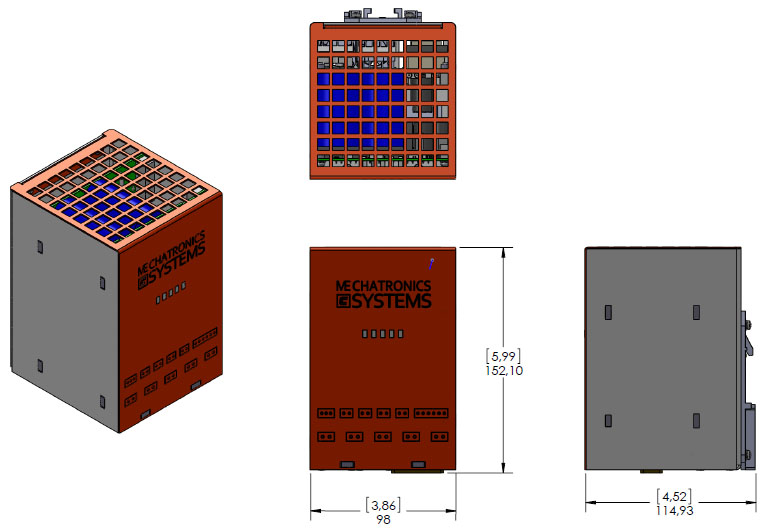

Brick Multi-Axis DC Power Supply

DC Multi-Axis Power Supply

The Mechatronics Systems BRIC Power Supply eliminates the need for 24V DC logic inputs, saving OEMs both time and money. This multi-axis power supply module delivers a DC bus and 24V DC logic to power up to three servo drives, such as the BSA12-100.

The low-cost, compact BRIC module delivers powerful performance, providing DC bus power, 24V DC logic power, and a built-in shunt regulator (referred to as 'crowbar').

Features & Benefits

  • 115/230 VAC single-phase power input, fuse protected
  • Four 170 VDC or 315 VDC bus outputs with a total current capacity of 20 A
  • Four independent 24 VDC outputs with 1 A current capacity
  • Integrated shunt regulator absorbs regenerative energy, rated at 300 W
  • Convenient Phoenix connectors for each axis
  • Easy-to-view LED indicators for operating status
  • Standard DIN rail mounting

Available Options

  • Custom power ratings and packaging available to meet OEM specifications



BRIC Power Supply

Parameter BPS-115 BPS-230
Input Voltage
 115 VAC, 50/60Hz 230 VAC, 50/60Hz
DC Bus Output (4 Channels)
 165 VDC 315 VDC
Logic Power Output (4 Channels)
 24 VDC
Shunt Brake Resistor Turn-On Level
 200 VDC 350 VDC

Outputs:

  • Four DC bus outputs (165/315 VDC), 20 A total output current
  • Four 24 VDC logic power outputs, 1 A total output current

Additional Specifications

  • Internal DC/DC converter with 50/60 Hz transformer technology provides high reliability, stable operation, and low EMC emissions
  • Integrated 50 W shunt resistor for DC bus overvoltage protection

Outputs/Indicators:

Function Condition Output LED Indicator
«Overheating» +80C degrees/176F degrees + +
«Main Power On» 160 VDC + +
«Logic Power On» 24 VDC + +
«24Vdc Short Circuit» Short circuit + +
«Power Resistor On» Resistor turn on - +

All outputs are open-drain, 30 VDC, 200 mA maximum

For additional product details and technical information, please contact the factory directly.
  • BPS-115
  • BPS-230

See the Specifications tab for details on each model number.

For additional product details and technical information, please contact the factory directly.
