SD45 Brush Servo Drives

DC servo drive

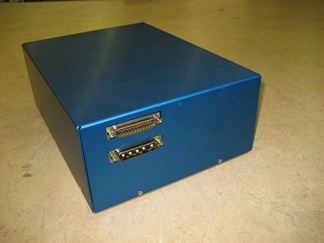

SD45 Power DC servo drive

High-Performance DC Brush Servo Drives

The SD45 is the latest addition to our high-performance servo drive family. Originally designed for commercial radar applications, including NEXRAD National Weather Service antennas and various military systems, the SD45 delivers exceptional reliability. It features a compact, rugged design, high current ratings, and failure-proof power and I/O connectors, ensuring durability in demanding environments.

The SD45 is also engineered for industrial applications, offering cost-effective packaging and ratings to work in every application of DC brush servo drives.

The SD45 is a fully digital servo system, designed for easy installation and operation without the need for potentiometers. Whether you are an OEM, integrator, retrofitter, or end user supporting DC brush servo systems, the SD45 is the right solution.

Features & Benefits

  • Current or velocity loop control for precise motor performance
  • Digital input command interface for seamless system integration
  • Industry-standard ±10 V analog command input
  • 15 A continuous / 30 A peak
  • 20 A continuous / 40 A peak
  • 30 A continuous / 60 A peak
  • 40 A continuous / 80 A peak
  • Wide 100-250 VDC bus input range
  • Tachometer feedback for accurate speed control
  • Configurable digital I/O, including CW/CCW over-travel limits and drive disable functions
  • Ready-to-run operation right out of the box
  • Fast setup and tuning with DRIVELINK graphical configuration software
  • Easily adjust current limits, control gains, and system parameters
  • Rugged design for industrial and demanding applications

Available Options

  • Modbus TCP/IP communication for seamless integration with PLCs, HMIs, and industrial automation networks
  • EtherCAT communication for high-speed real-time motion control applications
  • 100 A continuous current rating for high-power motor control requirements
  • Single-axis position controller for precise positioning and advanced motion control applications

Power

Model # Input Voltage Peak Current Continuous Current
SD45

100- 250 VDC

60 A

30 A



Motor

Motor Type Standard

DC Brush Motor

✓



Feedback

Feedback Type Standard

Tachometer

7, 19, 30 VDC/1000 RPM



Command

Command Source Standard

Analog input +/-10 V

✓

RS485 (Modbus RTU)

✓



Mode of Operation

Mode Standard

Current Control

✓

Speed Control

✓



Interface

Control Input Characteristics

Analog Inputs

Two inputs +/-10V, 16-bit resolution

Digital Inputs

Two 5 VDC inputs

Digital Outputs

Three outputs, open drain, up to 28 VDC

Analog Outputs

One +/- 10 V output


The DS45 is a high-performance single-axis DC brush motor drive designed for industrial automation and motion control systems. Its embedded graphical programming environment and advanced control features enable rapid development, fast commissioning, and reliable operation across a broad range of machine control and process automation applications.


Features

Benefits
PLC with graphical programming language
Eliminates the need for an external PLC by enabling process logic directly within the drive. Programs can be created using block diagrams, text-based code, state machines, and algorithms. All drive events, digital and analog I/O, and drive parameters can be used for position, speed, and torque control
PC-based configuration software
Simplifies commissioning and maintenance with fast setup for various motor types. Supports automatic and manual regulator tuning, real-time monitoring of drive parameters, a dual-channel oscilloscope, and advanced diagnostic tools
Fault and event logging
Stores fault and event history in non-volatile memory, preserving critical operational data even after power loss. Logged information includes timestamps and key operating values such as temperature, DC bus voltage, and load current
Configurable protection functions
Enhances equipment reliability and safety with protection against following error, overvoltage, undervoltage, overcurrent, short circuit, I²T overload, and overtemperature conditions. Supports automatic or manual fault reset and multiple fault indication and stop modes
Acceleration and deceleration profiles
Improves machine performance and reduces mechanical stress with configurable linear and S-curve acceleration/deceleration profiles, including optional acceleration limiting
Built-in tuning generators
Reduces setup time and optimizes performance with automated tuning of current and velocity control loops
