M3500 Series AC Brushless Motors

M3500 brushless AC servomotor
M3500 Brushless servo motor

High-performance AC Brushless Servo Motors for Precision Applications

Mechatronics Systems developed the M3500 series for precision servo applications. Utilizing advanced 3-D FEA, our engineers optimized both the magnetic and mechanical designs, resulting in the smallest package on the market. The M3500 servo motor features a high torque-to-inertia ratio, rugged design, superior quality, and ease of customization for many industrial applications.

Features & Benefits

  • Standard 100 mm frame size with NEMA 34 mounting interface
  • Rated stall torque up to 30 in-lb
  • High-energy magnets and advanced stator winding design
  • High torque and low rotor inertia for fast dynamic response
    (For high-inertia applications, see the MHI3500 Series)
  • Integrated, rugged feedback devices
  • Smooth and quiet operation
  • Rugged and reliable design featuring large bearings and high-temperature windings

Available Options

  • Flexible design tailored for OEM applications
  • Custom bearing configurations
  • Custom shaft sizes and mechanical interfaces
  • Oversized bearings for increased load capacity
  • Custom winding configurations
  • IP65 and IP67 environmental sealing
  • Resolver, Hall sensor, and encoder feedback options





For additional product details and technical information, please contact the factory directly.

For additional product details and technical information, please contact the factory directly.

For additional product details and technical information, please contact the factory directly.

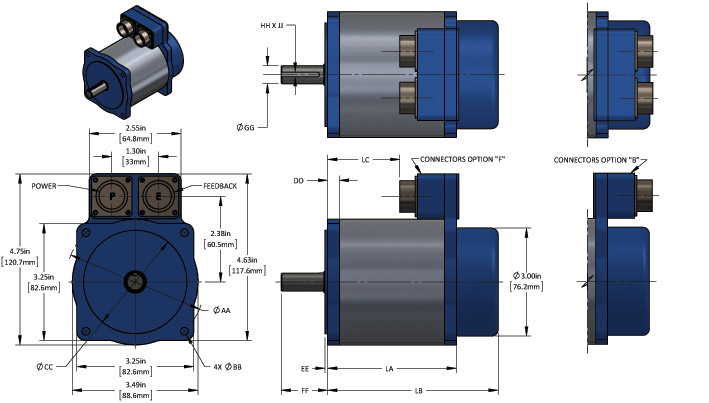

BMC 3500L



Model Frame
size		 LA LB LC AA BB CC DD EE FF GG HH JJ
keyway
depth
BMC-3500L-01-M 100 mm 65.5 mm 95.0 mm 25.6 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC-3500L-02-M 100 mm 90.9 mm 120.4 mm 51.0 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC-3500L-01-N NEMA 34 2.58 in 3.74 in 1.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in 500 in .125 .070
BMC-3500L-02-N NEMA 34 3.58 in 4.74 in 2.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in 500 in .125 .070

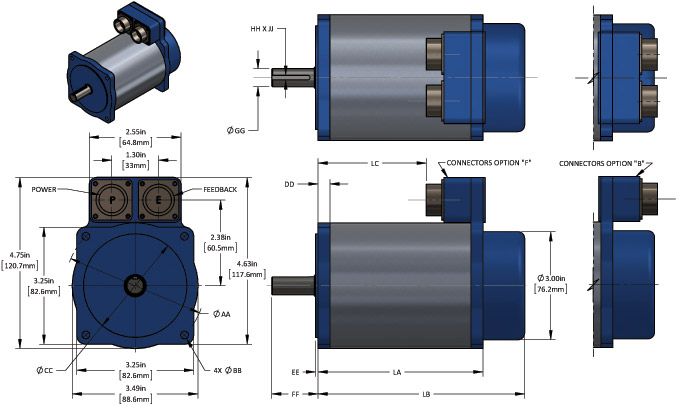

BMC 3500M



Model Frame
size		 LA LB LC AA BB CC DD EE FF GG HH JJ
keyway
depth
BMC-3500L-01-M 100 mm 90.9 mm 120.4 mm 51.0 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC-3500L-02-M 100 mm 116.3 mm 145.8 mm 76.4 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC-3500L-01-N NEMA 34 3.58 in 4.74 in 2.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in 500 in .125 .070
BMC-3500L-02-N NEMA 34 4.58 in 5.74 in 3.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in 500 in .125 .070

For additional product details and technical information, please contact the factory directly.
