BMC3500 Low and Medium Inertia Brushless Servo Motors

BMC 3500 AC Brushless Servomotor
BMC 3500 AC Brushless servo motor

BMC3500 Series Brushless Servomotors for Low and Medium Inertia Applications

The BMC3500 series of high-performance AC servo motors is the newest addition to our motor product family. Featuring one of the industry's smallest footprints, the BMC3500 combines high-energy rare-earth magnets with an efficient magnetic and mechanical design to deliver exceptional performance. Engineered for demanding industrial servo applications, the BMC3500L offers low inertia for high-speed machine designs, while the BMC3500M provides higher inertia for stable operation in legacy machines and position-control systems.


All BMC3500 Series brushless AC servo motors are available in a range of custom configurations designed to meet the requirements of new applications and aftermarket support. Featuring a powerful, compact design, the BMC3500 Series serves as a direct form, fit, and function replacement for several servo motor brands, including Ametek (MCG), Rockwell International, and Parker.

BMC3500 brushless AC servo motors are available with Mechatronics Systems servo drives, including the uUSD. We also design custom servo drive solutions for cost-sensitive applications, incorporating only the functionality required to meet specific performance and control requirements. Contact our Applications Engineering team to discuss your servo motor and servo drive application needs.

All BMC3500 Series brushless AC servo motors are proudly manufactured in the USA at our Boston facility. Mechatronics Systems is committed to providing fast turnaround times for OEMs and end-user customers. Our servo motors can be customized to meet your exact application requirements with a wide range of options, including tachometers, encoders, resolvers, brakes, and gearboxes.


Features & Benefits

  • Flexible design for OEM applications
  • Continuous stall torque from 14 to 27 in-lb (1.5 to 3 N·m)
  • Lightweight, compact package
  • Precision low-speed performance
  • High torque-to-inertia ratio for responsive motion control
  • High torque-to-weight ratio for improved machine efficiency
  • Rugged industrial construction for long service life
  • Large sealed ball bearings for enhanced durability

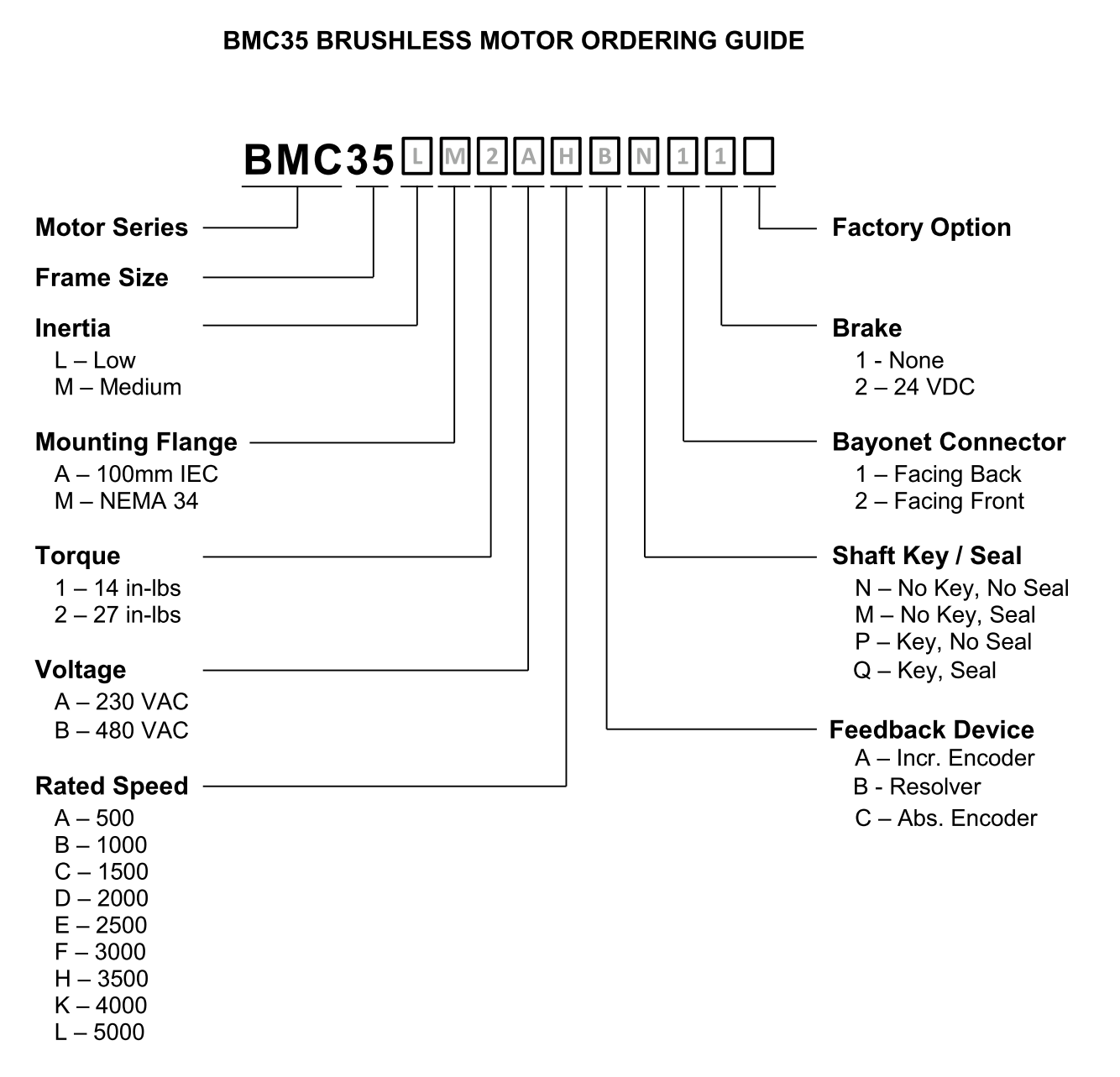

Available Options

  • Incremental and absolute optical encoder feedback
  • Resolvers
  • Custom cables and connectors
  • Fail-safe brakes, including models with a manual release lever
  • Gearboxes
  • Standard IEC 72-1 metric mounting dimensions
  • NEMA 34 mounting dimensions
  • Custom mounting and dimensional configurations
  • IP65/IP66 shaft seal protection


For additional product details and technical information, please contact the factory directly.

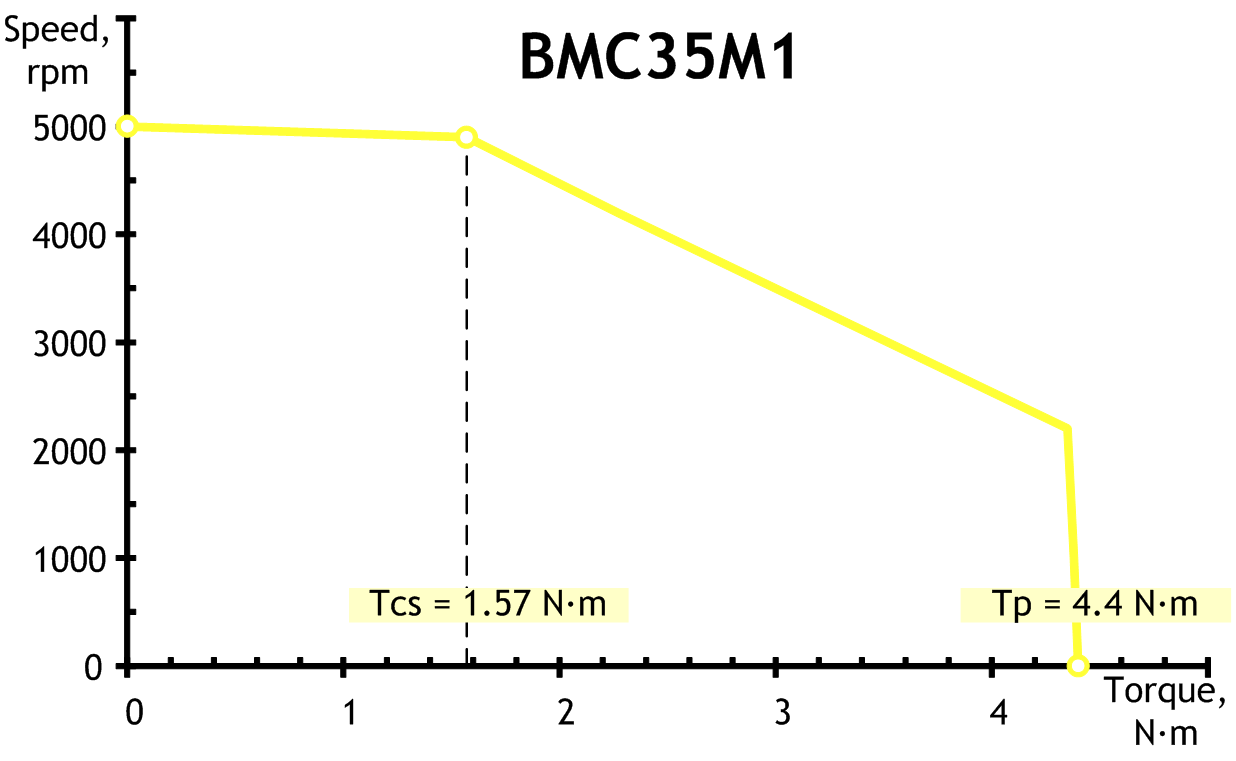

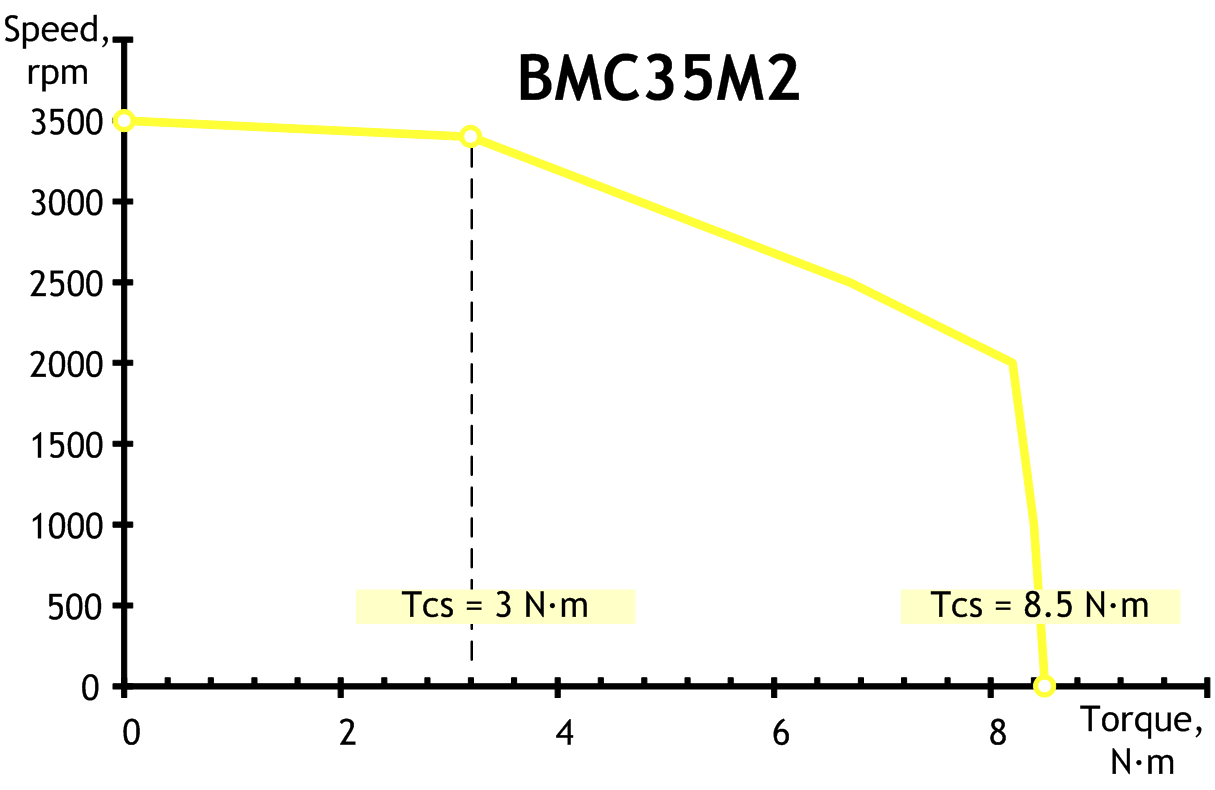

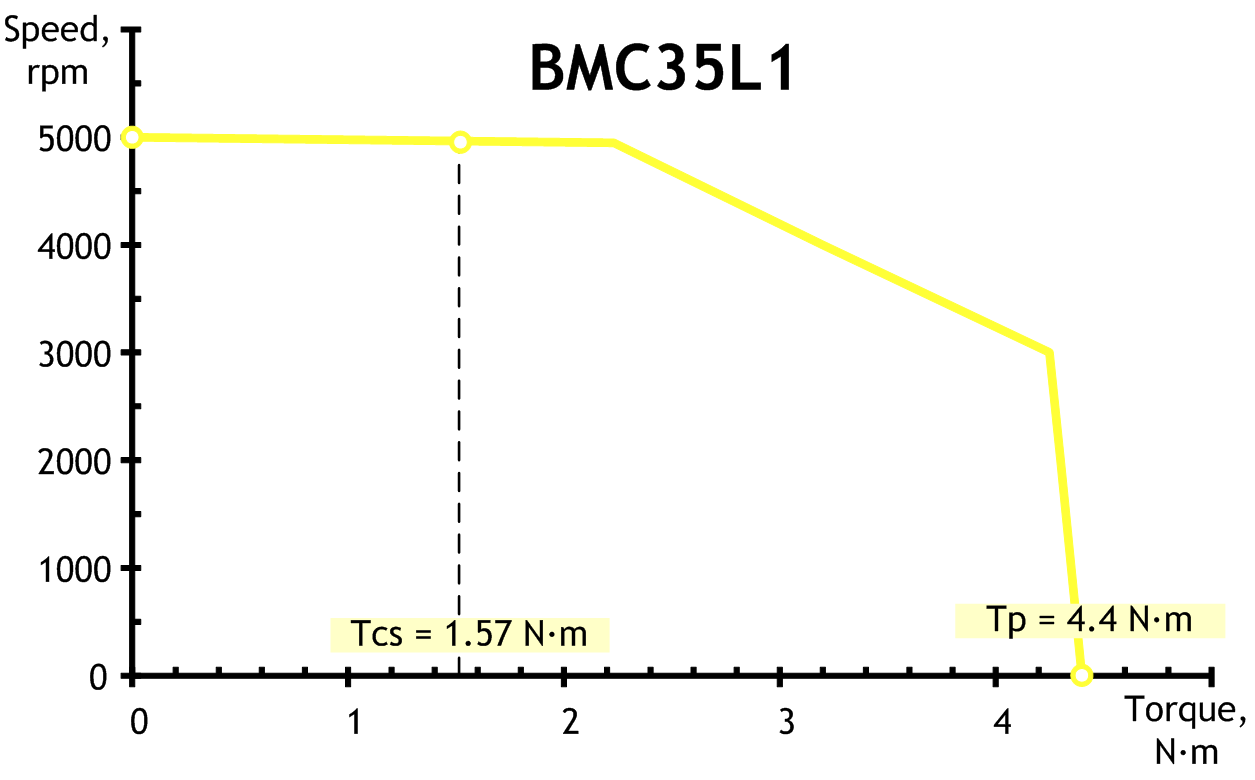

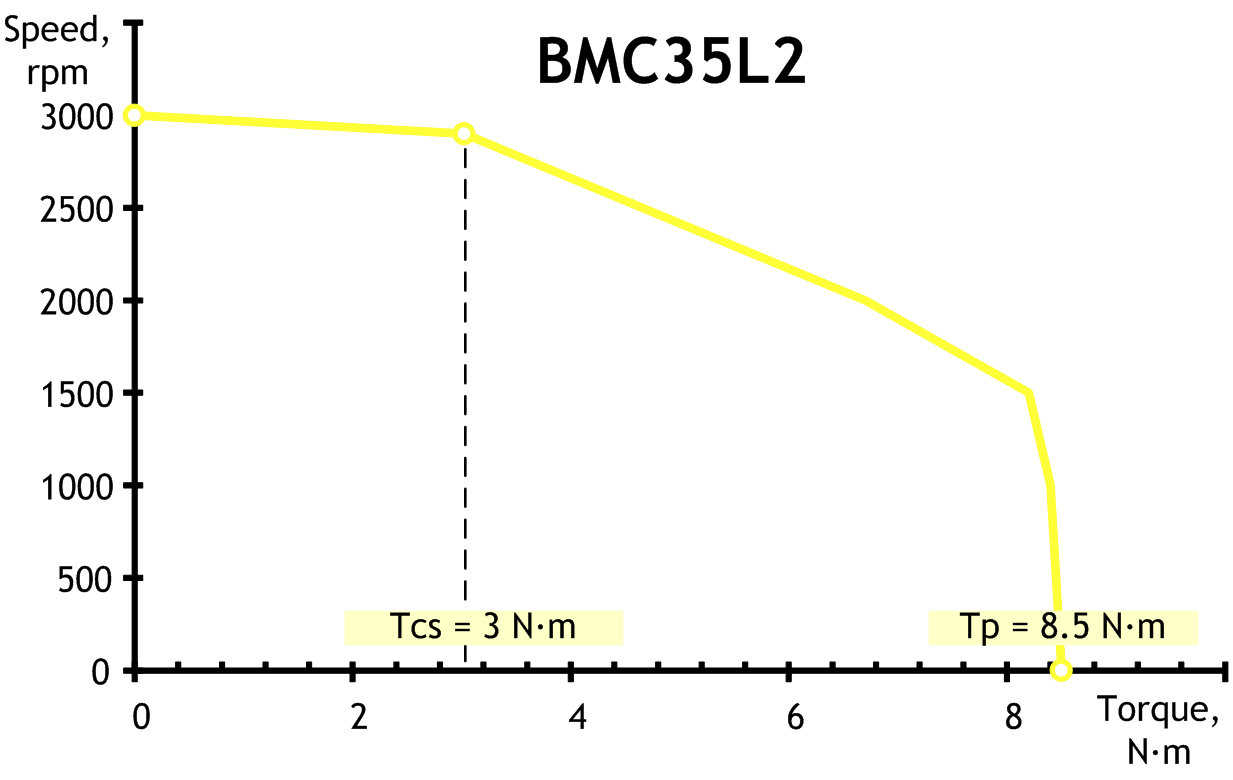

BMC3500 Brushless Servomotor Performance Data

Parameter Unit BMC35L1 BMC35L2 BMC35M1 BMC35M2
Max Operating Speed rpm 5000 3000 5000 3500
Continuous Torque (Tc) Nm(in-lb) Nm 1.57 3.02 1.57 3.02
in-lb 14.00 27.00 14.00 27.00
Peak Torque (Tp) Nm 4.4 8.5 4.4 8.5
in-lb 39.3 75.9 39.3 75.9
Continuous Stall current, A (0-peak) A 5 3 9 28
Peak Current, A (0-peak) A 14 9.3 6 19
Torque Constant (Kt) lb-in/Amp 4.57 7.62 4.57 6.53
Nm/Amp 0.52 0.86 0.52 0.74
Back EMF Constant (Ke) L-L peak V/kRPM 31.28 52.13 31.28 44.69
DC Resistance L-L ohm 4.53 4.48 3.72 1.54
Inductance mH 17 21 43 8
Rotor Inertia (Ja) KG-M^2 0.000045 0.000077 0.0000133 0.000252
LB-IN-S^2 0.0004 0.00068 0.00118 0.00223
Weight kg 2.3 3.3 3.4 4.4

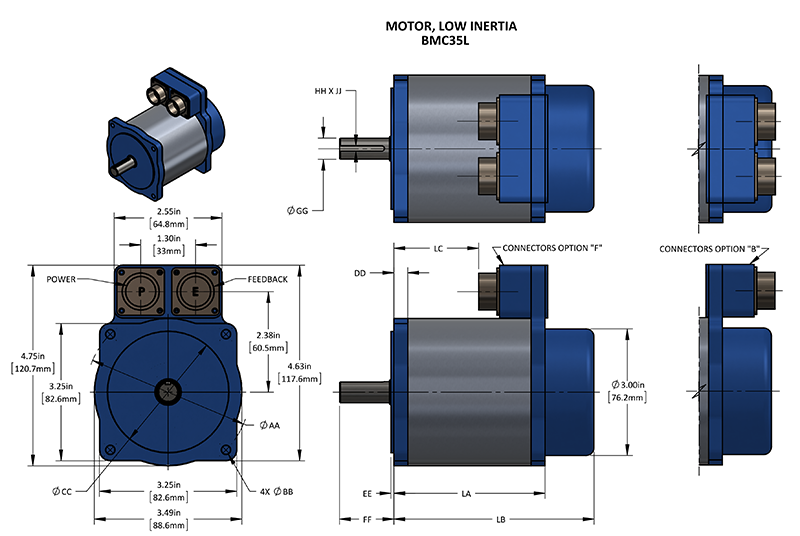

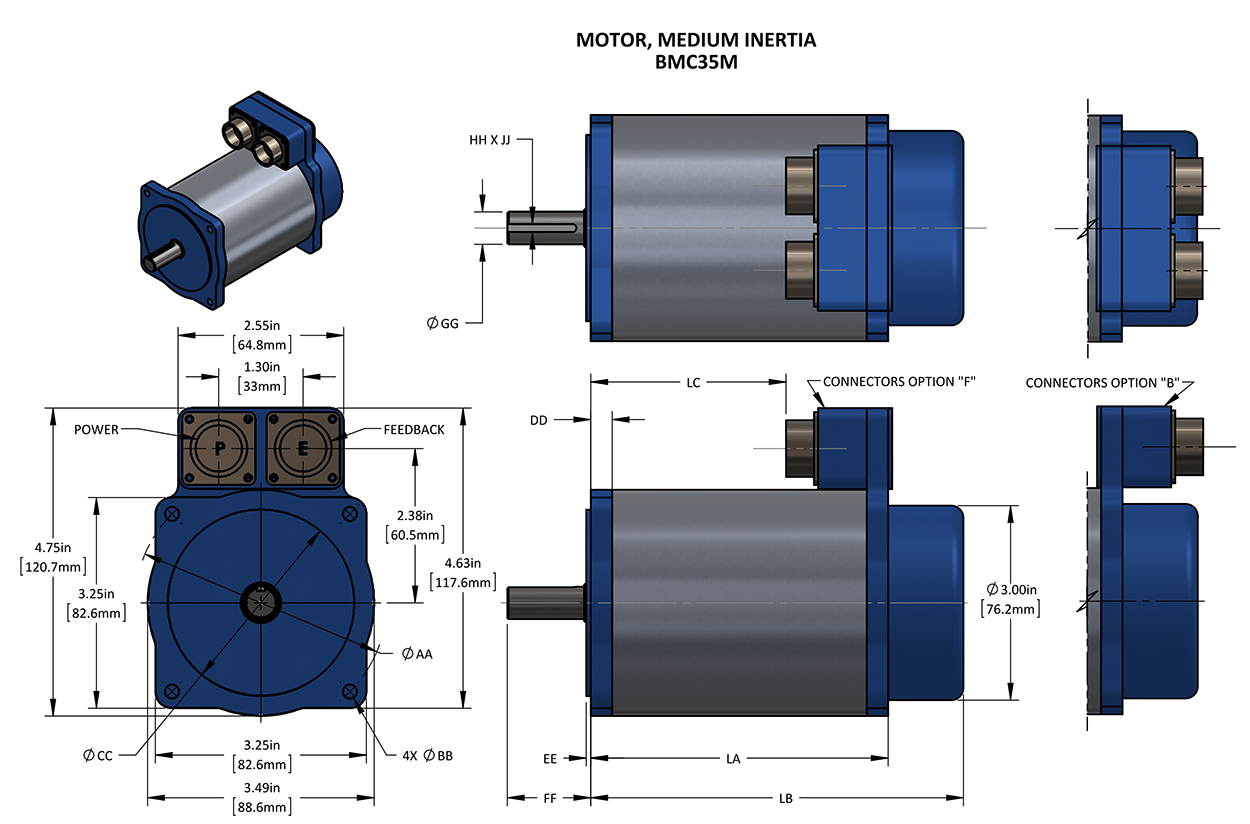

MODEL FRAME SIZE LA LB LC AA BB CC DD EE FF GG HH JJ Keyway Depth
BMC35MA1 100 mm 90.9 mm 120.4 mm 51.0 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC35MA2 100 mm 116.3 mm 145.8 mm 76.4 mm 100.0 mm 7.0 mm 80.0 mm 9.9 mm 2.87 mm 40.0 mm 16.0 mm 5.0 mm 3.0 mm
BMC35MB1 NEMA 34 3.58 in 4.74 in 2.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in .500 in .125 .070
BMC35MB2 NEMA 34 4.58 in 5.74 in 3.01 in 3.875 in 0.22 in 2.875 in 0.33 in 0.070 in 1.29 in .500 in .125 .070
