M8000 High-performance DC Brush Servo Motors
M8000 series DC servo motor
High-Performance DC Motor for Precision Variable Speed and Servo Applications
The M8000 is a high-performance DC servo motor designed for variable speed and servo applications. Originally developed for use in hydraulic pumps and traction systems requiring high torque and power, the M8000 offers a compact design with high power density and exceptional starting and continuous torque. Featuring high-energy permanent magnets, the M8000 is lighter and more efficient than traditional series/shunt wound motors. Known for its simplicity and reliability, the M8000 is commonly used with DC power supplies. Additionally, the motor can easily be converted into a high-performance servomotor by integrating a feedback device for precision control.
Features & Benefits
- Open, TENV and TEFC enclosures are available
- UL and CSA listing attainable
- Constant pressure brush mechanisms improve brush and commutator life
- Large shielded or sealed ball bearings are pre-lubricated
- C-face is standard on all models, while optional bolt-on bases provide additional mounting options
Options
- Feedback devices such and encoders and resolvers for precision servo applications
- Shaft length and diameter
- Metric mounting dimensions
- Custom mounting brackets
- Various current and voltage ratings
- Resolver and Encoder feedback for servo applications
- Tachometer feedback 7- 30V DC/1000 RPM
Specification
- Voltage Range: 12-72 volts (battery powered applications) 90 and 180 volts (rectified power supplies)
- Ratings: 2 through 15hp ( up to 5500 RPM depending on speed and voltage)
- Current rating: Up to 700A peak
- Insulation: Class For Class H
Performance
Performance
Model Number
Model Number

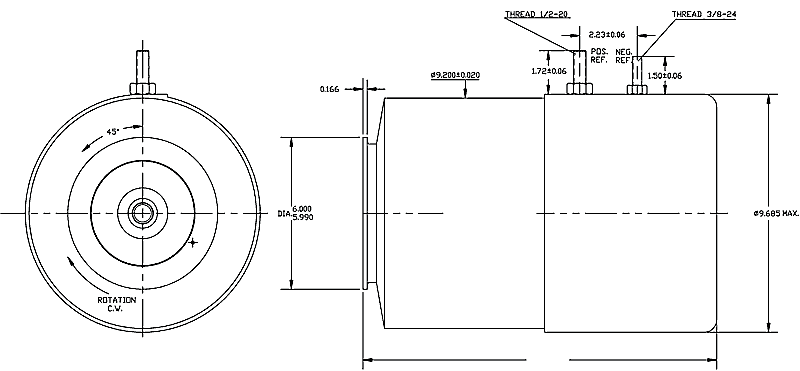

Dimensions
